What is Transmission Utility Steel Pole?

Structural & Functional Overview

Utility Steel Poles are hot-dip galvanized steel structures replacing traditional wood/concrete for overhead power distribution (11kV-230kV). Designed for 60-100 year lifespans, they offer superior strength-to-weight ratios, reduced right-of-way, and compatibility with smart grid technologies.

 Key Technical Specifications

 Design Features

1. Structural Optimization

1. Taper Ratio: 1:100 (base-to-top diameter)

2. Section Types:

   1. Constant Taper: Seamless transition (11-33kV)

   2. Stepped Taper: Fabricated sections (66kV+)

3. Connection Systems:

   1. Flange joints (ASTM A325 bolts)

   2. Splice sleeves (full-circumference welds)

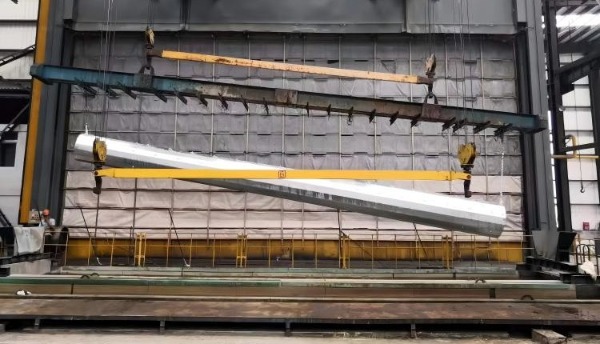

2. Galvanization & Corrosion Protection

3. Electrical Configuration

[Top]
├── **Static Wire** (OPGW): Lightning protection
├── **Transmission Conductors** (3-6 phases)
│    ├── ACSR 336-1590 kcmil
│    └── Spacer-dampers
├── **Street Lighting Arm**
├── **Distribution Cables** (ABC/AAAC)
└── **Communication Lines** (fiber/coax)
[Base]
└── **Equipment Platform**: Transformers, reclosers, capacitor banks

 Electrical Components Integration

 Regional Design Variations

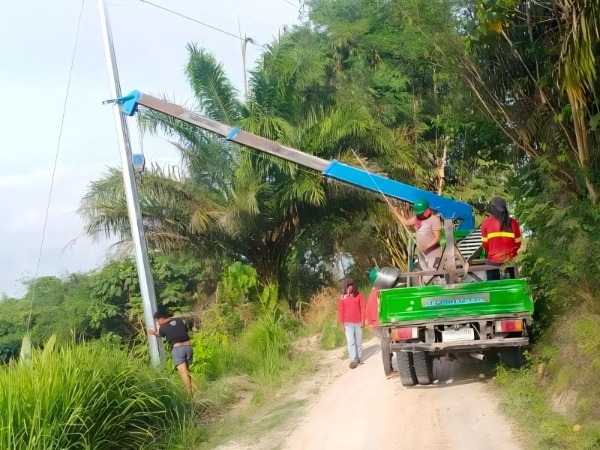

 Installation Process

1. Site Prep

   1. Ground resistance <25Ω (IEEE 81)

2. Foundation

   plaintext



   Distribution: Augured hole → Pole insertion → Concrete backfill
   Transmission: Anchor bolts → Leveling → Grout → Pole erection

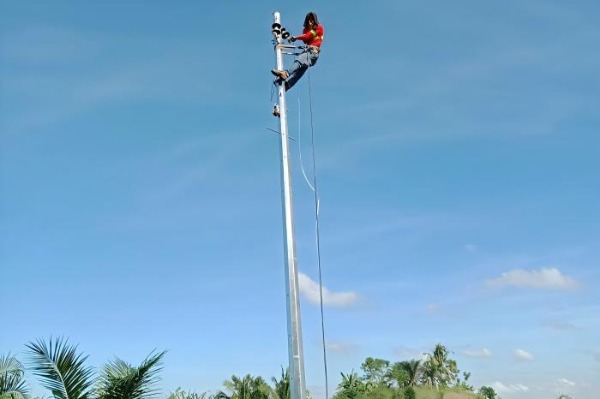

3. Equipment Mounting

   1. Torque-controlled assembly (NASM 1312-10)

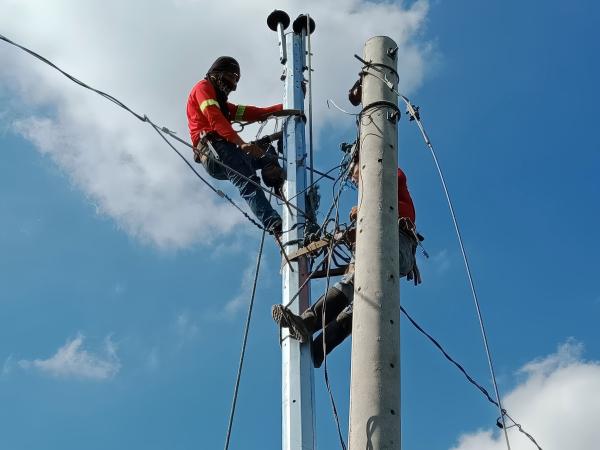

4. Conductor Stringing

   1. Tension: 15-25% CBL (conductor breaking load)

 Standards Compliance

 Cost Analysis (12m Distribution Pole)

 Smart Grid Integration

• Monitoring:

  1. Dynamic line rating sensors (IEEE C37.118.1)

  2. Fault current indicators (LoRaWAN enabled)

• Automation:

  1. SCADA-controlled reclosers

  2. Remote capacitor switching

• Renewables Ready:

  1. Pre-installed conduits for solar/storage interconnects

 Case Study: Florida Hurricane Hardening

• Challenge: Replace 12,000 wood poles after Hurricane Ian

• Solution:

  1. 14m steel poles (ASTM A572 Gr. 50)

  2. 4m embedment depth (sandy soil)

  3. 230 km/h wind rating

• Results:

  1. 0 failures during subsequent Category 4 storm

  2. 30% faster installation vs. concrete

  3. 55-year projected lifespan

 Maintenance Advantages vs. Wood

 Future Innovations

Hybrid Composites:

1. CFRP wraps for seismic zones (200% ductility increase)

Robotic Maintenance:

1. Drones for insulator cleaning (100 poles/day)

Energy Harvesting:

1. Piezoelectric dampers (5W/pole vibration → power)

Digital Twins:

1. BIM + IoT strain gauges → predictive replacement
